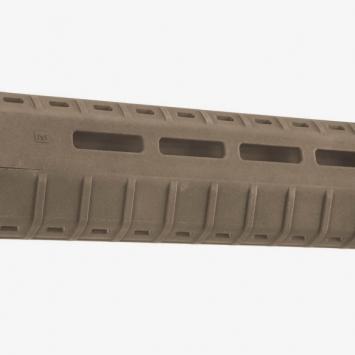

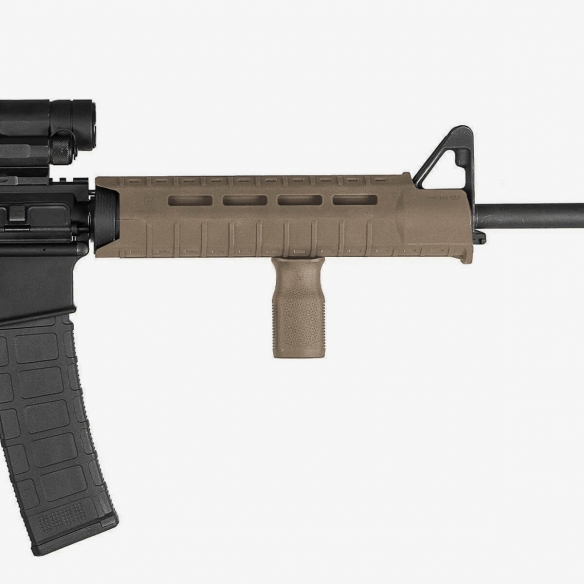

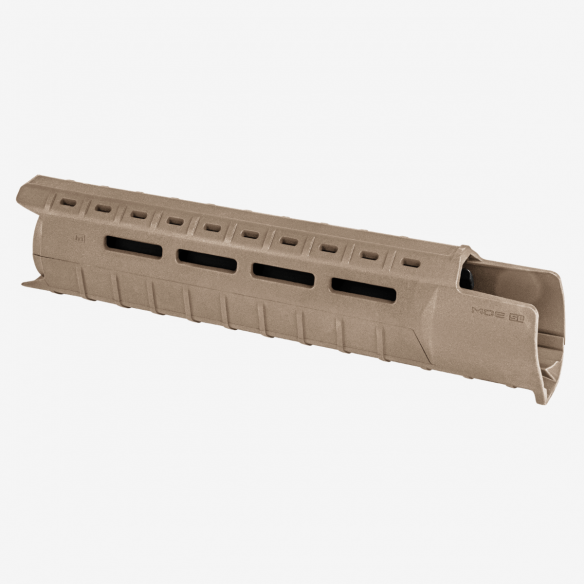

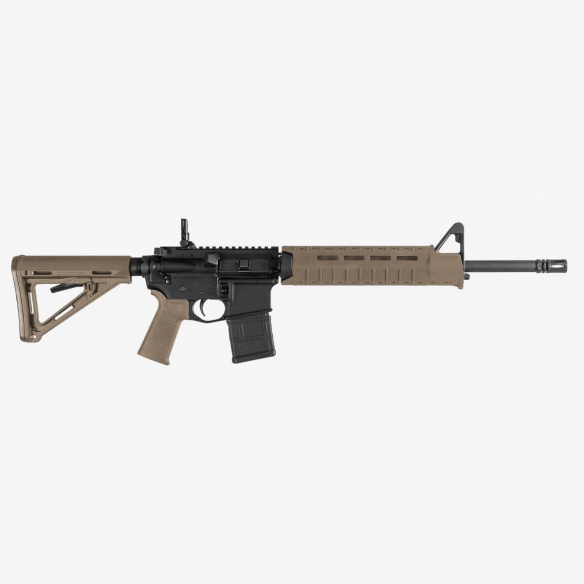

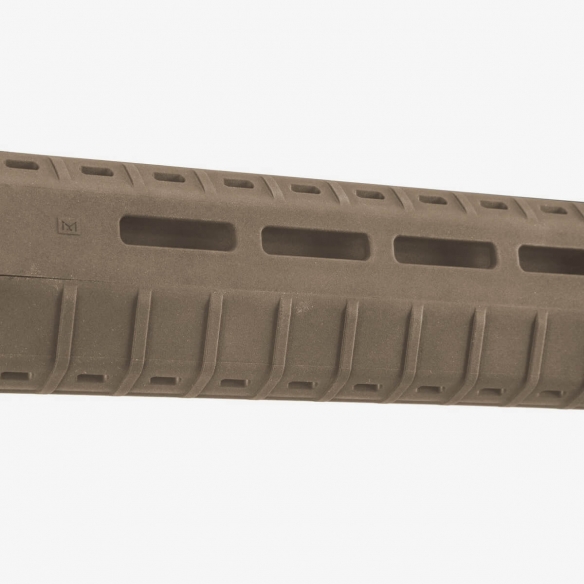

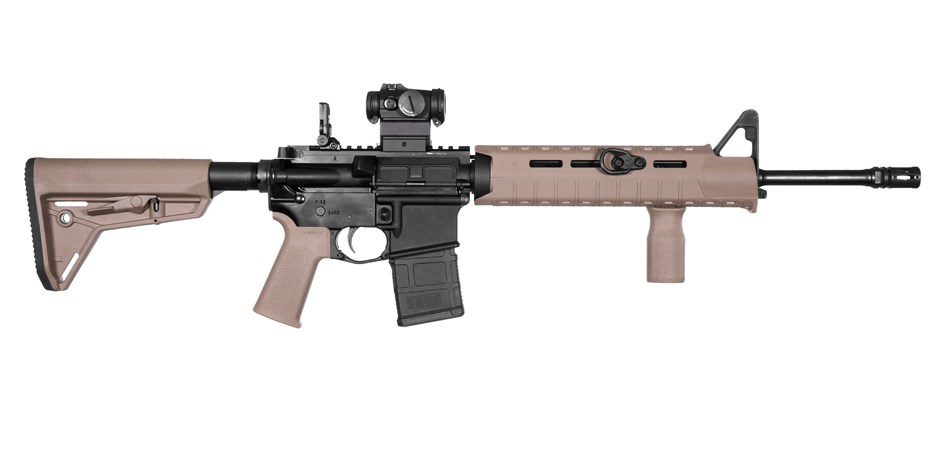

The MOE SL® Hand Guard, Mid-Length – AR15/M4 for firearms with Mid-length gas systems and an A2 front sight* provides modular flexibility with M-LOK® accessory slots in a lightweight, sleek, cost-effective design. Designed with versatility in mind, M-LOK slots at the two, six, and ten o'clock positions allow the attachment of optional Picatinny rail sections and other direct-attach M-LOK accessories for the mounting of tactical lights, slings, grips, etc.
Reinforced, heat-resistant polymer construction provides operational durability without the weight and expense of an aluminum rail hand guard. A large front extension and lower lip protects the user from the hot front sight assembly and maximizes useable hand guard length.
Made in the USA.
LIGHT WEIGHT REINFORCED, HEAT-RESISTANT POLYMER CONSTRUCTION
M-LOK SLOTS FOR ACCESSORY ATTACHMENT
Slots at the two, six, and ten o'clock positions for mounting direct-attach M-LOK accessories or M-LOK 1913 Picatinny rail sections
1/3" NARROWER PROFILE THAN ORIGINAL MOE (1.8" RATHER THAN 2.2")
Narrow design replaces bulky M4 Carbine-type plastic hand guards
INTEGRAL RIVETED ALUMINUM HEAT SHIELD
Front lip and long side extensions shields hand from hot sight assembly
Magpul_MAG551_MOE_SL_Handguard_Installation_Guide
Platform: AR10, AR15, M4
Length, max: 10.9 in.
Weight: 6.7 oz.
Width: 1.8 in.
Height: 2.4 in.
Compatibility: Firearms with carbine-length gas systems and an A2 front sight. Easy to install utilizing existing delta ring and round front hand guard retaining cap with A2 front sight assembly
Easy to install utilizing existing delta ring and ROUND front hand guard retaining cap with A2 front sight assembly*.
NOTE: The Mid-Length MOE SL Hand Guard is a direct replacement for most factory plastic, two-piece, mid-length hand guards and requires a ROUND front hand guard retaining cap and rear spring-loaded delta ring (some mid-length firearms are equipped with a triangular retaining cap and are not compatible). Not compatible with piston operated AR platforms.
*Must be used with the A2 front sight assembly as other gas blocks are not compatible. If so equipped, the factory sling swivel must be removed from the A2 front sight assembly (using a small punch).
