Mounting Hardware is Included
This mount fits:
Browning T-Bolt
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.

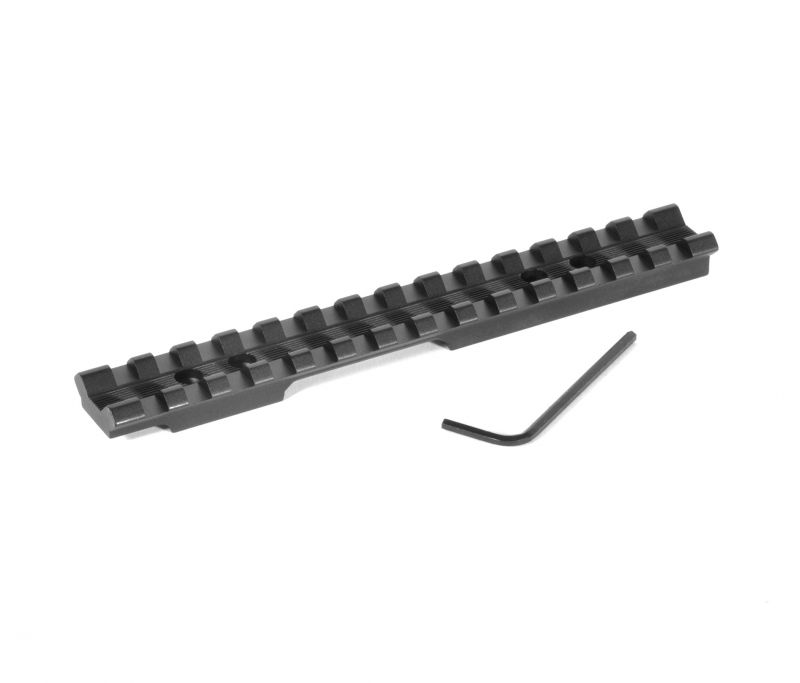

Rail Type: One Piece Picatinny
Machined from: Domestic 6061 T6 Extruded Aluminum
Finish: Matte Black Anodizing
Center Spread: 2.868"
Overall Length: 5.882"
Height: .4" (Top of Receiver to Top of Picatinny)
Weight: 2 oz.
Quick Disconnect Ring Compatible: No
Ambidextrous: Yes
Torque Specs: 20 in/lbs
Mounting Hardware: #6-48 X 1/4 Screws and T-10 Bit Included
This mount comes standard with a bevel on both sides making it ambidextrous.
We recommend measuring the hole spacing in your receiver to confirm it matches with the dimensions we have published.
Picatinny cross slots run the full length of the rail, which gives the shooter flexibility when mounting scope rings and other accessories. The channel in the center reduces the overall mass of the mount. Also, in many cases, it will not obstruct usage of factory iron sights. Our one-piece scope mounts are the obvious choice for hunters and tactical shooters alike.
We machine these in our shop using one of our machining centers. After machining, the mounts are tumbled, sand blasted, and Type II anodized for long lasting durability.
Installation: We recommend 20 inch lbs of torque and a drip of blue loctite
We recommend:
0 MOA - if shooting 0-500 yards
