Red Dot Fitment:
Vortex Viper
Vortex Venom
Burris Fast Fire
Docter
ADE RD3-001
ADE RD3-002
ADE RD3-009
UTG Reflex Micro Dot
Crimson Trace CTS-1200
Crimson Trace CTS-1300
Sightmark Mini Shot
Sightmark Core Shot
The mounting screws require a 5/64" wrench and the set screws (when applicable) require a 1/16" wrench.
Mounting Hardware:
(2) 6-32 Button Head Screws
(2) 6-32 Flat Head Screws
This mount fits:
Walther PPQ Classic (M1)
Walther PPQ M2 (All models except optics ready and .22lr)
Walther PPQ 45
Walther PPQ 45 SD
Walther PPQ Sub Compact
Walther P99 (All Models)
Walther PPX (All Models)
Walther Creed
Walther Creed 10 Round
Walther PPS (Does not fit models with sight rib)
Walther PPS M2 (Does not fit models with sight rib)
This mount does not fit:
Walther PPQ 22
Walther PPQ Q4 Tac (optics ready)
Walther Q5 Match (optics ready)
Walther Q5 Match SF Arabesque
Walther Q5 Match SF Patriot
Walther Q5 Match SF Black Diamond
Walther Q5 Match SF Match Black Tie
Any Walther model that comes with the standard sights that have the detent will work with this mount. This mount now comes with a set screw allowing it to be used with the friction fit dovetails.
The PPQ sight has a hole drilled in the bottom of the dovetail to accomodate the plunger on some models of the Walthers.

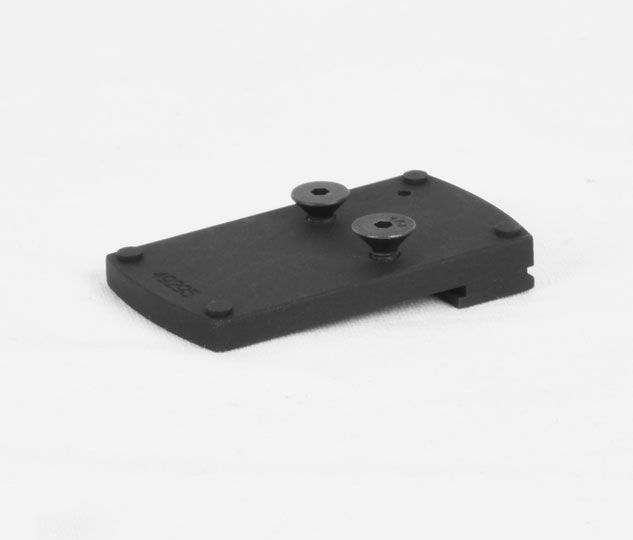

Material: 7075 Aluminum
Coating: Matte Black Hardcoat
Overall Length: 1.811"
Overall Width: .99"
Torque Specs: 15 in/lbs
Our red dot sights are meant to be installed from the left to the right (with the muzzle facing forward). The dovetail has a progressive taper to allow for easier install.

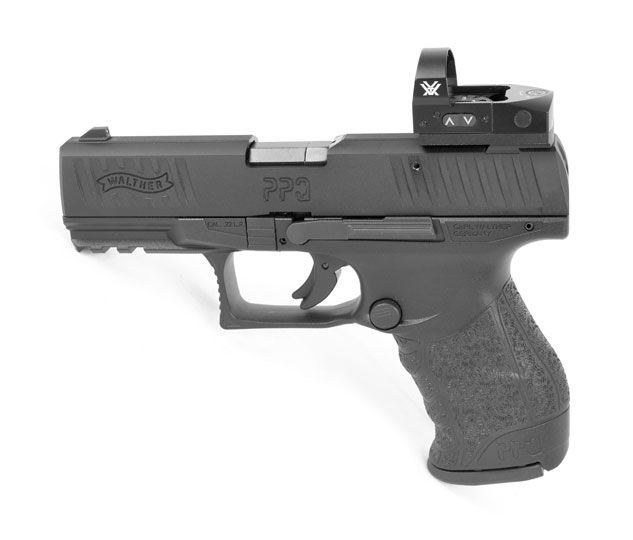

Simply remove the rear sight on your gun and replace it with our mount in order to mount your Vortex Viper/Venom, Burris FastFire, or Docter red-dot sight. You can take our mount off and replace your rear sight at any time. Mounting hardware included.
Installation Instructions
- Remove the rear sight*
- Install the EGW Sight Mount in the dovetail
- Tighten set screw (if applicable)
- Place the red dot sight on the EGW Sight Mount
(placing a small piece of paper between the red dot sight and the sight mount will make for easier removal and will keep Loctite off of the red dot sight.)
- Apply blue Loctite to the provided mounting screws
- Torque mounting screws to 15in/lbs
2 Button Head Cap Screws - Provided for Vortex Viper and Venom Sights
2 Flat Head Cap Screws - Provided for Burris FastFire and Docter Sights
Modification of your firearm may nullify the manufacturer's warranty.
This product should be installed and checked by a qualified gunsmith.
No liability is expressed or implied for damage or injury which may result from improper installation or use of this product.
