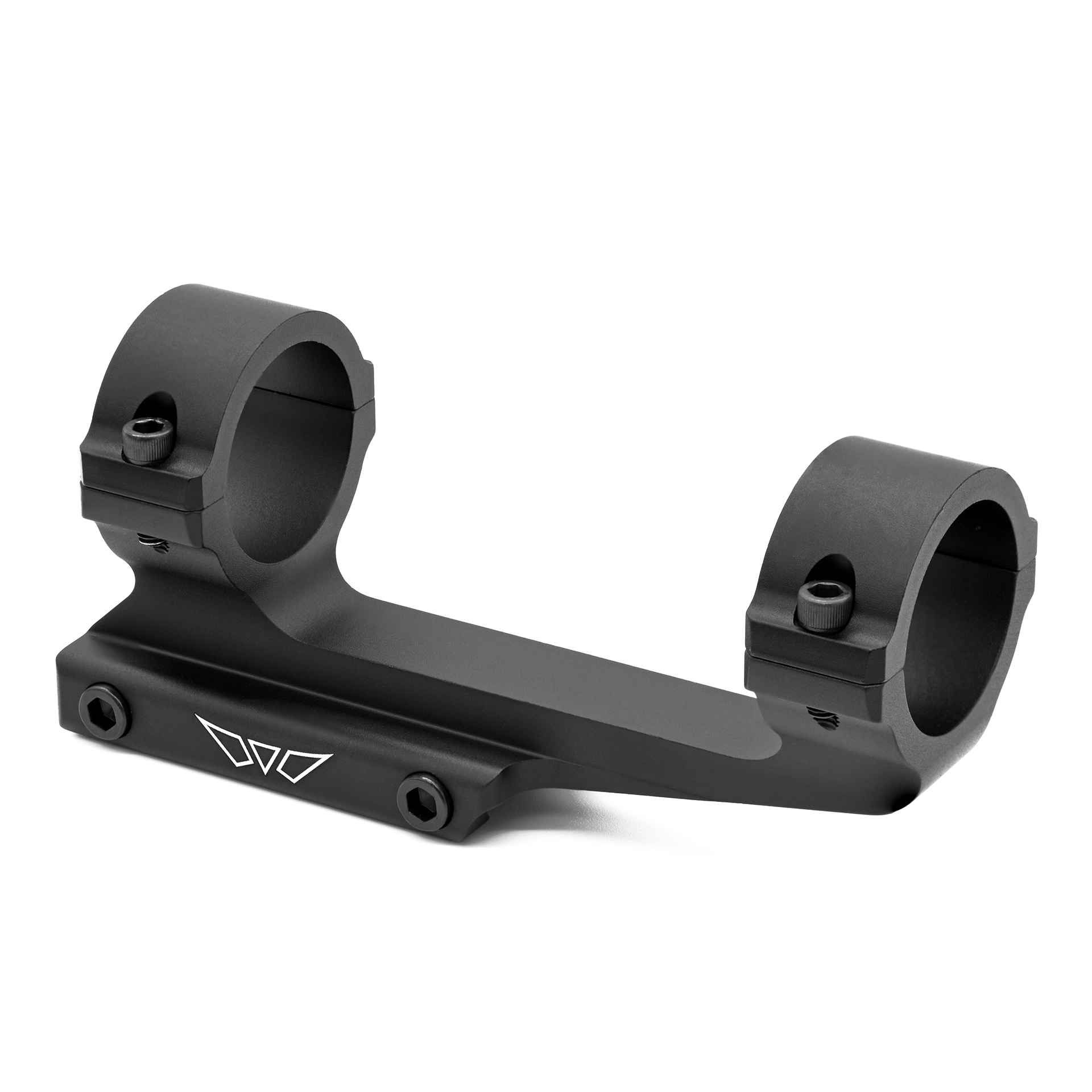

Warne Vapor 1 Piece 30mm Cantilever Scopemount

Name: Warne Vapor 1 Piece 30mm Cantilever Scopemount
Brand: Warne
SKU: V4002M
Price: 90.00 EUR
Availability: InStock

Vapor monobloc 30mm Cantilever Scopemount

(0 Beoordelingen)

€90,00

Voorraad

Voorraad:

3 In voorraad

Artikelnr: V4002M

Beschrijving

The Vapor cantilever MSR mount is perfect for someone looking to get an affordable US-made one-piece scope mount for their MSR AR-style rifle. The cantilever design gives you the eye relief you need for modern rifle scopes and is a perfect scope mount for a low-power variable optic.

AFFORDABLE, MADE IN USA QUALITY Our Vapor® line of mounts was developed and engineered to provide you with a solid and economical mounting solution that outperforms other mounts in their class.

Time-tested designs
Easy to install
Field proven performance
Lightweight aluminum
Lifetime warranty
Designed and Made in USA

Part Number: V4002M

Fits Objective Size: 72mm

Height: MSR Ideal Height

Dimension A: 30mm

Dimension B: 1.40 inch

Dimension C: .750 inch

Dimension D: 3.05 inch

Finish Color: Black

Weight: 4.7 oz

Material: Aluminum

Scope Tube Diameter: 30mm

Fits Objective Up To: MSR Ideal Height

On your MSR, pull charging handle to the rear and lock back.
Remove cross bolts and slide ring mount assembly onto tactical rail from rear of firearm and mount as far forward as possible to clear charging handle and provide proper eye relief.
Align ring mount with slots on the tactical rail and install cross bolts and tighten cross bolts. Do not exceed 30 in/lb*.
Remove ring caps using provided hex wrench and install scope onto ring mount assembly and replace ring caps. Be sure to leave a small space between front ring and tapered start of objective bell. Loosely tighten ring caps*, ensuring an even gap remains between ring mount and cap.
Loosely tighten ring caps*, ensuring an even gap remains between ring mount and cap. Position scope for proper eye relief and reticle alignment and tighten caps evenly, leaving a small gap on both sides of the ring cap when tightened to scope manufacturers’ recommended torque setting**
